Introduction to the function of reduction motor

The function of the reduction motor is to increase the output torque at the same time. The torque output ratio is multiplied by the motor output, but be careful not to exceed the rated torque of the reduction motor; the inertia of the load is reduced at the same time, and the reduction in inertia is the square of the reduction ratio.

When changing the oil, wait for the reduction motor to cool down until there is no danger of burning, but still keep it warm, because the viscosity of the oil will increase after complete cooling, making it difficult to drain the oil. Note: Cut off the power supply to the transmission device to prevent accidental startup; during operation, when the oil temperature exceeds 80°C or the oil pool temperature exceeds 100°C and abnormal noise occurs, stop using it and check the cause. The fault must be eliminated and the lubricating oil must be replaced before operation can continue.

Reduced motors are mechanical transmission devices in many fields of the national economy. The product categories involved in the industry include various gear reduction motors, planetary gear reduction motors and worm reduction motors, as well as various special transmission devices, such as speed increasing devices, speed regulating devices, and various types of compound transmissions including flexible transmissions. The products and services cover metallurgy, non-ferrous metals, coal, building materials, shipbuilding, water conservancy, electric power, engineering machinery, petrochemical and other industries.

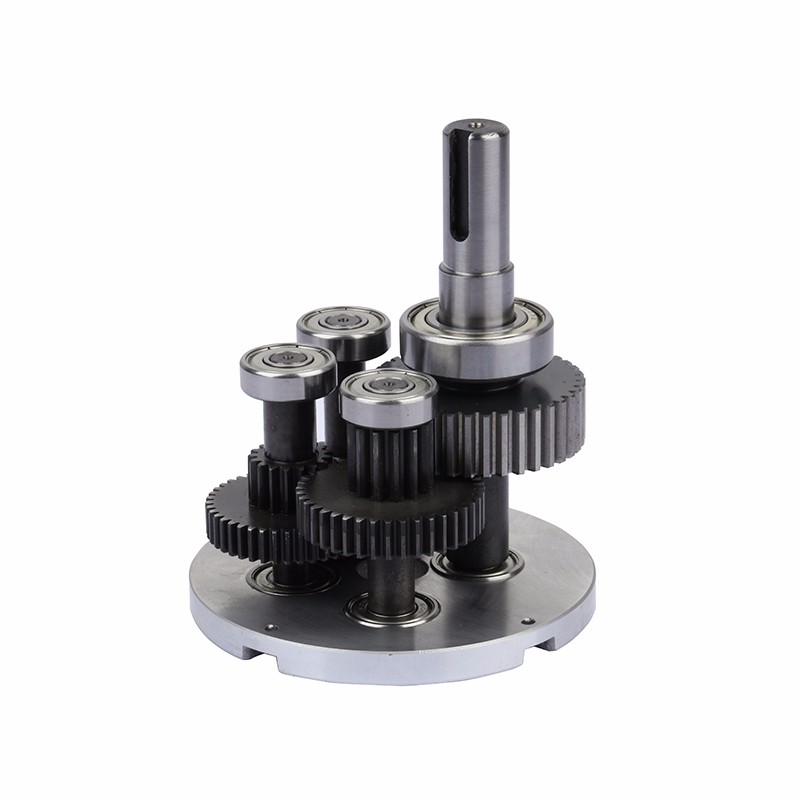

The main function of the reduction motor is to reduce the speed, increase the output torque, and reduce the inertia of the load. The working principle is that when the output speed of the motor is input from the transmission shaft, it drives the pinion to rotate, and the pinion drives the large gear to move. The large gear has more teeth than the small gear, and the large gear rotates slower than the small gear. shaft output, thus playing the role of output deceleration.

The reduction motor is an independent closed transmission device between the prime mover and the working machine. This is a relatively sophisticated machine. Its purpose is to reduce speed and increase torque. There are many types of reduction motors with different models. Different types have different uses and are widely used in modern machinery.
