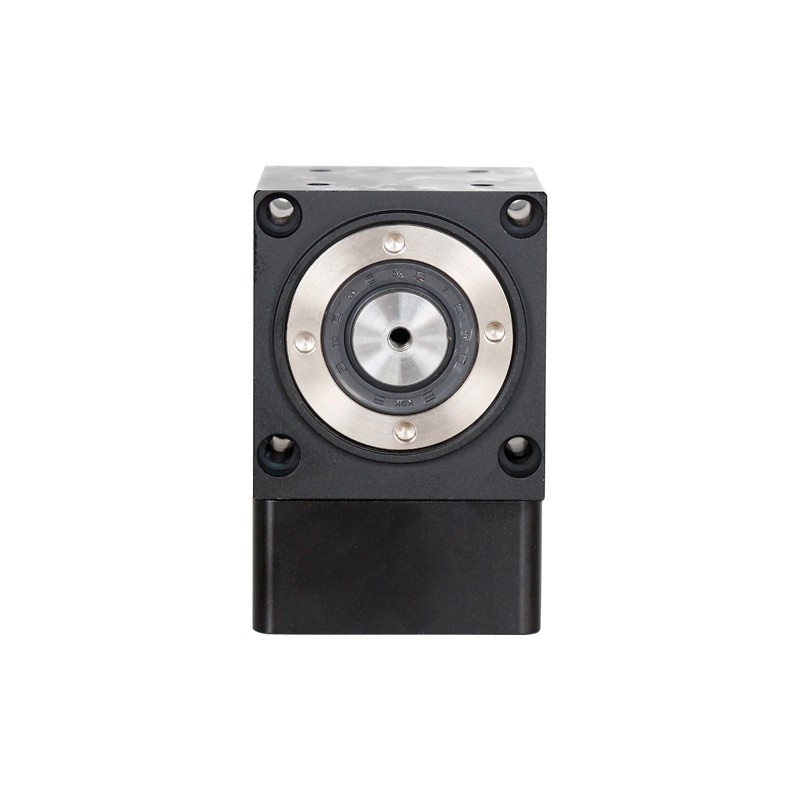

Basic knowledge of right angle planetary reducer

The right-angle planetary reducer is a power transmission mechanism that uses a transmission gear converter to reduce the rotational speed of the motor to the required rotational speed and obtain a larger rotation distance. The use of right-angle planetary reducers is very common in organizations that are used to transmit driving force and adaptability. You can basically see it from ships, vehicles, electric locomotives, engineering super heavy machinery, commonly used processing equipment in mechanical engineering and automated production machinery and equipment, to the transmission devices of various mechanical equipment such as household appliances and clocks that are common in daily life. footprints. Its use ranges from large driving force of transmission to small loads. From the perspective of transmission, the use of right-angle planetary reducers can be seen. In industrial production and applications, right-angle planetary reducers are used to alternate speed and increase pitch. Therefore, it is widely used in mechanical equipment that changes speed and torque.

Right-angle planetary reducers are generally used for low-speed and large-torque motor equipment, motor power, gas turbines, or other high-speed operation. According to the type of right-angle planetary reducer, the gear with a smaller number of teeth on the shaft meshes with the drive wheel on the output shaft. For the purpose of deceleration, the general right-angle planetary reducer can also produce the actual deceleration effect of several sets of transmission gears with the same basic principle. The ratio of the number of teeth of the transmission gears is the reduction ratio.
